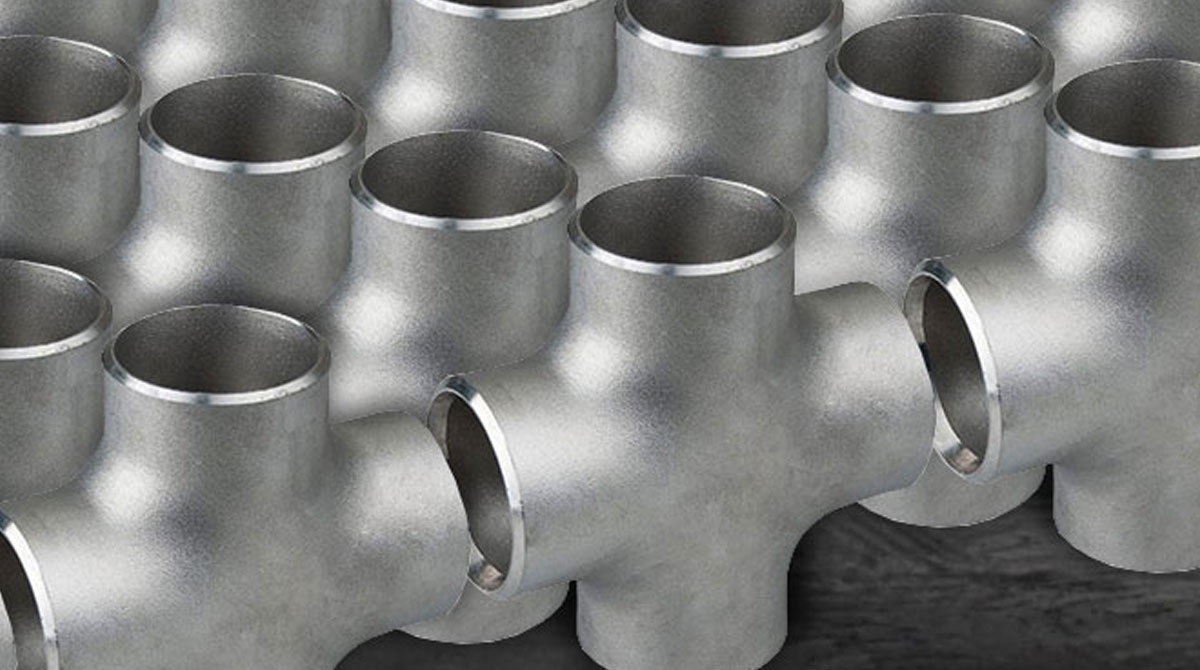

Pipe Cross
PIPE CROSS – STRAIGHT/EQUAL CROSS, REDUCING CROSS
MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43
CARBON, ALLOY, STAINLESS STEEL PIPE CROSS
We can supply pipe cross in two types namely, straight cross and reducing cross in a complete range of shapes and dimensions. We are a leading supplier of stainless steel cross tee and alloy steel cross tee to domestic customers and international customers in various industries such as oil and gas, petrochemical, power generation, pharmaceuticals, paper
Manufacturing, natural gas industry and chemical plants. Cross is used in many applications, as a junction for intersecting pipes.
Butt Welded Pipe Cross Production Range :
| Outside Diameter: |
Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″) |
| Types: |
Seamless, Welded, Equal Cross, Reducing Cross |
| Wall Thickness: |
3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services: |
Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: |
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards– Pipe Cross:
| ASME: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN: |
DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: |
EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 |
Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 |
Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 |
Buttwelding Ends |
| ASME B16.28 |
Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 |
Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Pipe Cross Material Grades
| Stainless Steel Pipe Cross |
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Carbon Steel Pipe Cross |
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Pipe Cross |
ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Pipe Cross |
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Pipe Cross |
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy Pipe Cross |
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
